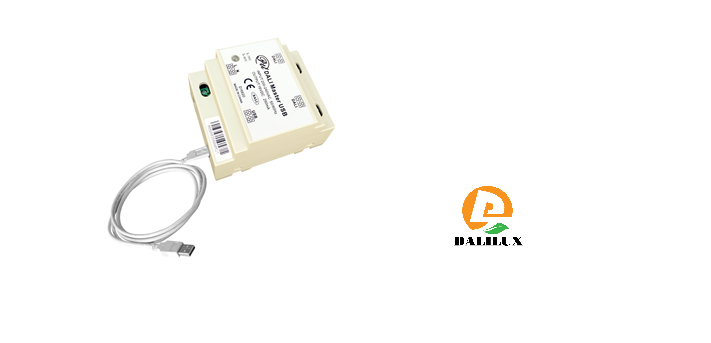

This manual provides with detail technical informationconcerning DALILUX  DALI Master USB. The addressing,programming and commissioning including the Software Tool, and the use of thedevice are described using examples. The device is used for control of DALIequipment, e.g. ballasts, transformers or LED converters with DALI interfacescompliant to EN 62386 (formerly EN 60929). The output of the device can be usedto connect up to 64 DALI devices. The 64 DALI devices can be individuallyaddressed and allocated as required in up to 16 lighting groups 16 lighting scenes. The application program offers a range offunctions: Switching(on/off), dimming, setting of brightness values, , Statusfeedbacks via common or separate objects Status response of a lamp.Programmingof individual maximum and minimum dimming limit values (dimming thresholds)Different dimming speeds for switching(feed time), setting brightness anddimming.Behaviour at DALI voltage failure and recovery .Programming of thebrightness value (power on level) and system failure level.Function Sequencefor programming of running lights or colour effects. The device combines boththe internationally standardized and open standards in the digital illuminationcontrol DALI (EN 62386 or EN 60929)

   Ø  Unique 2 in 1 designing,with integratedDALI power supply

   Ø  Unique software

   Ø  Comply with DALI standardIEC60929(DALI V0) and IEC62386(DALI V1)

   Ø Modular DIN-rail device

   Ø  64 DALI devices individual addressableand programable

   Ø  Integrated scene control function

   Ø  Max.16 individual channel

   Ø  Eachchannel maxium 16 lighting scenes,each scene maimum 90.51 seconds.Eachindividual address     can set minimum level、maximum Level、Power onLevel、system failure level Indication of DALI fault

   Ø Device recall can be indicated to a certainScene or the running scene 20Second before power off.

   Ø  Using 485-bus communication

   1.Input：AC220～240V  50/60Hz

   2.Power：>5 W

   3.OutputVoltage：16VDC

   4.OutputCurrent：250mA(max)

   5.USB Port：1个

   6.DALI BusPort：2个

   7.Temperature：OperationTemp 0℃~45℃

           OperationHumidity 20%~90%

           StorageTemp. -40℃~+55℃

   StorageHumidity 10%~93%

   8.Size：87mm×71mm×57mm

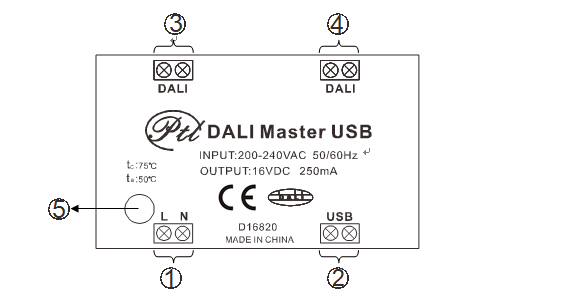

   ①L、N for PowerInput (AC200～240V)

   ②USB To Computer

   ③DALI Bus Connection

   ④DALI Bus Connection

   ⑤CPU/DALI Two ColorIndicator Light：

   1.GreenColor for CPU。

   2.Whendevice communicate with computer,red color flashing

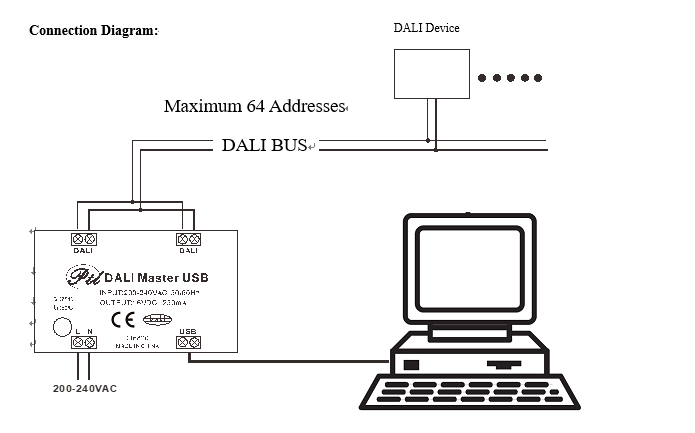

   All the parameter of the DALI are programed via DALIMaster USB software tool,including DALI device      information、 addressing、grouping、makingscenes、timing the scenes、maximumlevel...

   Ø Scan all the device connected onthe DALI Bus(The device must comply with DALI standard) ,the device will beaddressed(New initialisation and System extension)

   Ø 64 device with Broadcast or encoded

   Ø Can program/read the parameter ofthe DALI device on the bus

   Ø Can program/read the scene

   Ø Can timing the scene.

   This device use a standard DIN railinstallation.instal directly to the stardard rail

   All the operation of this device arefollowing the command,sending from the DALI master software(DALI Standard).

   Common problem analyze:

   1. ALARM light up: DALI Overcurrentor short-circuit failure on the bus.

   2. DALI master can not be controlled:

   1)       Please double check if properly installed thewiring.

   2)      If the loaded DALIdevice working damaged

   3)      If the address is thesame as DALI master interface address

   4)      Check if some problemwith the DALI BUS(check voltage if 16-17VDC)

   If problem still not solved,please contact our engineersor return back to the agents!

   The product transport, required in packagingconditions, Transport andunpacking process should not be subject to violent vibration and impact. storage in the original packaging,keep the storage place clear, The ambient temperature not over-40℃~+55℃, Relativehumidity not over 90%.Nocorrosive gas in the air.
