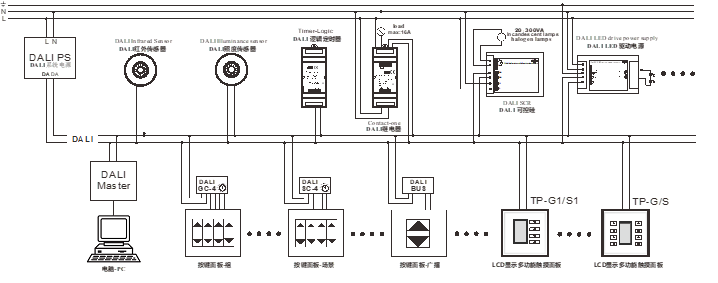

DALI SYSTEM

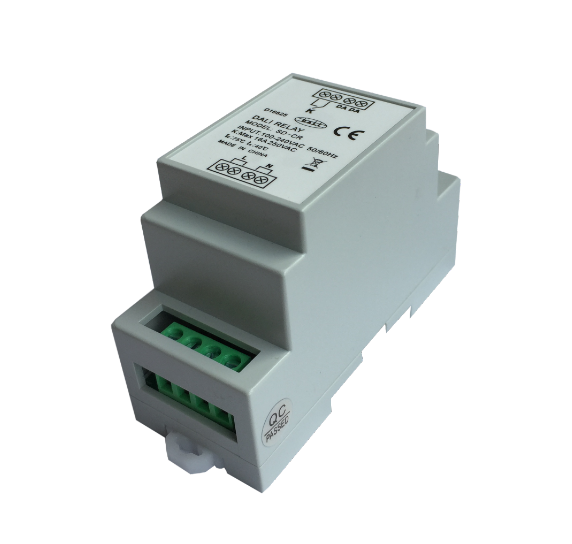

      DALI relay, meeting internationally standardized protocol of DALI totally. It is compatible withsome DALI control system of internationally famous brands perfectly, including SIEMENS、TRIDONIC、OSRAM、PHILIPS and Lutron.

      The relayof DL-CR DALI adopts electromagnetism relay of OMRON to ensure stableelectrical properties and service life .



    DL-CR:

     Meeting internationallystandardized protocol of DALI(IEC60929/ICE62386)

     Inputvoltage : 100-240VAC  50Hz/60Hz。

    standby power≤0.5W

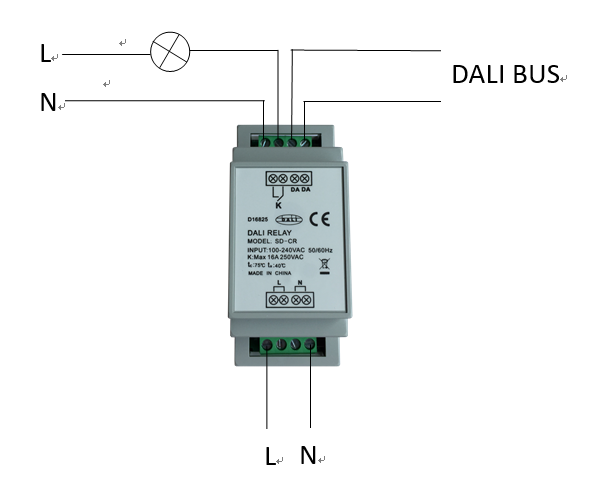

     K connector is unidirectional contact and the states of power-on is inclosing .

    Themaximum current is 16A.

     DALI command“ off “ is disconnect contact and “on” is close contact .

     Standard guide rail type installation

    operating temperatur: ta:-20-45℃ tc:75℃e

     Three-year warranty

     weight : netweight  80g  gross weight 143g

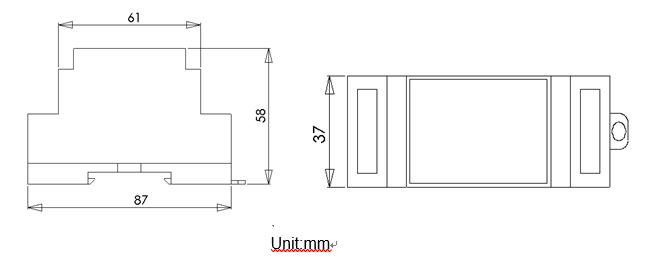

     product size:   L87×W37×H58mm

    packing size :L100×W45×H60mm







      1、Reading all explanation carefullybefore using

      2、Setting up a good environment toventilate and dissipate

      3、In the process of using, paying moreattention to preventing moist, shock and dust.

      4、Prohibit the rain and the contact ofother liquid or corrosive gases.

      5、You should make drying treatment intime when it is affected with damp and liquid.

      6、You should check the damaged andaging rate of electric circuit in regular and replace disqualified    circuit immediately.

      7、Please connect with agent or ourcompany when the machine breaks
