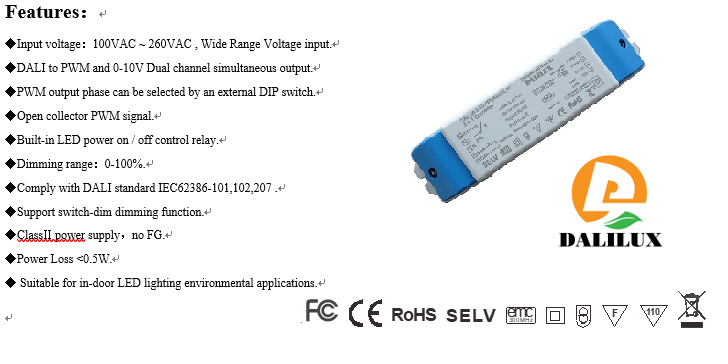

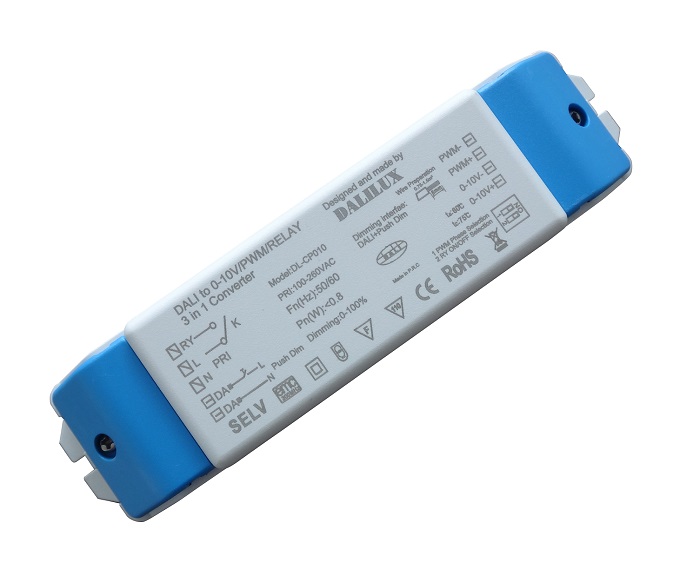

DALI SYSTEM




    Model No.

                                                          DL-CP010







    Input

    Input Voltage

    100VAC ~ 260VAC

    Current

    0.01A

    Frequency

    50/60Hz

    Power loss

    <0.8w< span="">

    Input Signal

    DALI,Switch-DIM

    leakage current

    <5ma 240vac="" span="">

    Surge current

    Cold start:10A/115VAC  15A/230VAC



    Output

    Output signal

    1 channel:PWM,1KHz

    2 channel:0-10V

    PWM phase

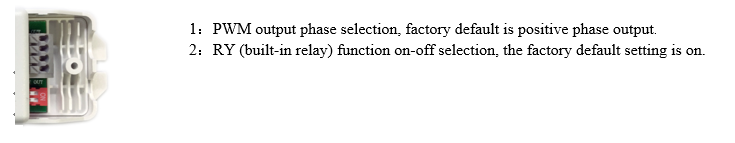

    The output phase can be selected by an external DIP switch (factory set to positive phase output)

    Dimming range

    0-100%

    Function

    Relay switch

    Built-in 250V / 10A relay, through the external DIP switch to disable and enable the relay function.

    LVD AND EMC

    DALI standard

    IEC62386-101-102-207

    Maximum Voltage testing

    Input to Output:3750VAC

    Insulation resistance

    Input to Output:100MΩ/500VDC/25℃/70%RH

    Safety standard

    NE61347-1,EN61347-2-11,EN61085-1

    EMC standard

    EN55015,EN61547,EN61000-3-2/3



    Environment

    Working temperature

    -20 ~ 60℃

    Working humidity

    20 ~ 90%RH  No condensation℃

    Storage temperature

    -40 ~ 80℃,10 ~ 90%RH



    Packing

    Product size

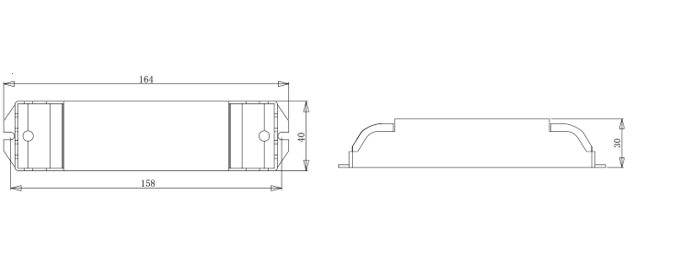

    164×40×30mm(L×W×H)

    Packing size

    170×43×33mm(L×W×H)

    Product Weight

    80g±5g








      DL-CP010 Built-in relay can control the LED drive power switch。

      The built-inrelay function can be controlled on and off via an external DIP switch。

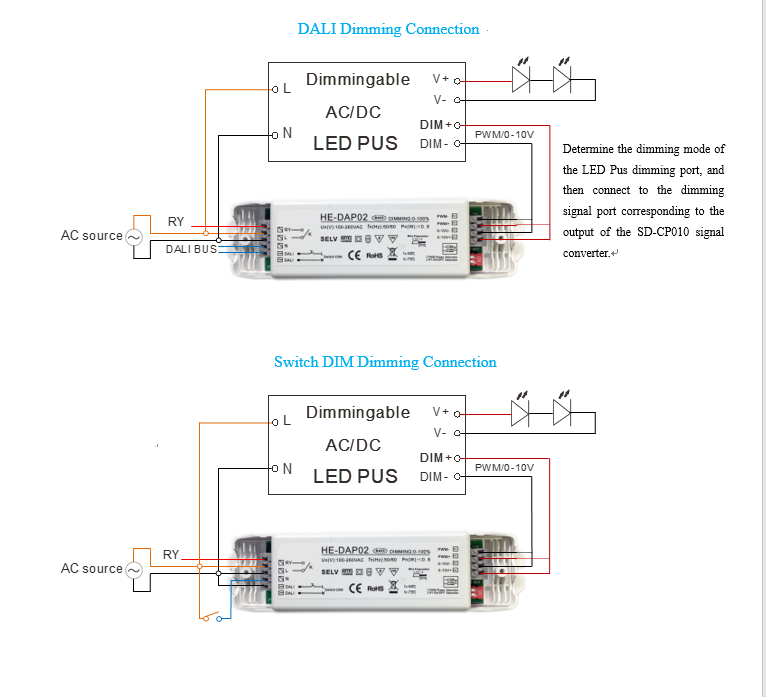

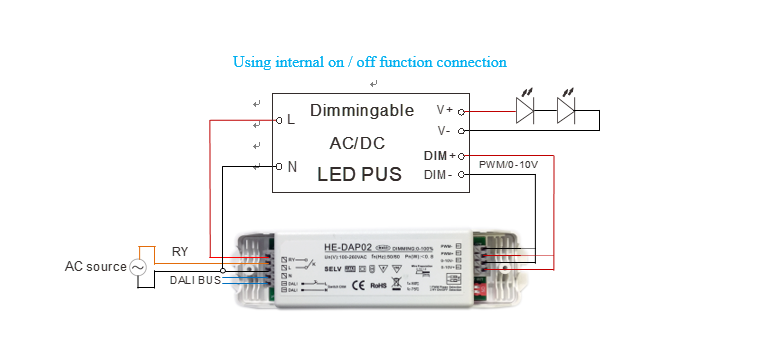

      When thebuilt-in relay is in the normally closed state, the RY terminal and the Lterminal are connected. When the system issues a shutdown signal, the RYterminal and the L terminal are disconnected.








      1、Read the manual before use

      2、This deviceneeds to be installed by professional electricians.

      3、Beforepowering on, double-check the wiring connection.

      4、During the use, pay attention to moisture, shock, dust.

      5、Do not allow rain, contact with other liquids or corrosive gases.

      6、Promptly dry, if be damp or liquid invasion.

      7、Regular inspection line damage and aging, should be replaced unqualifiedline.

      8、If the machine malfunctions, contact your dealer or our company.
