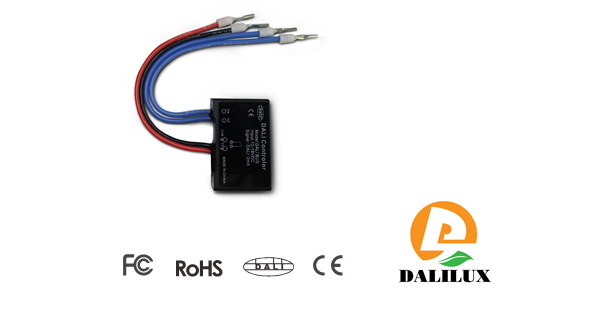

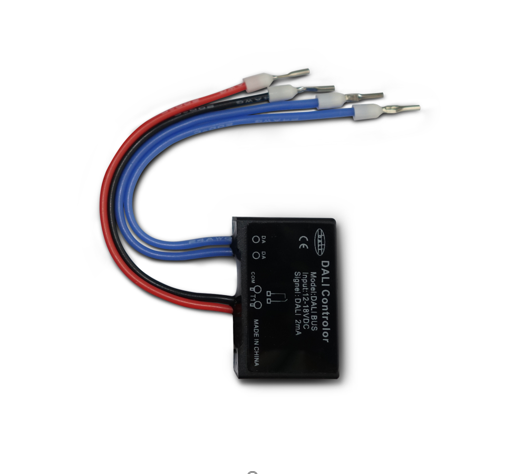

As the internationally standardized bus protocol of intelligent lighting,DALI is widely used in the indoor illumination. Therefore ,our companydevelops a serious of dimming module of DALI Controler Bus .It is compatible withsome DALI control system of internationally famous brands perfectly, includingSIEMENS、TRIDONIC、OSRAM、PHILIPSand Lutron.

   Digital lighting’s control module of DALI Controlor Bus has some characteristicslike high accuracy, tiny volume and high stability .The power supply of DALIControlor Bus is gained from DALI bus with designed current less than 3mA andlow dissipation so as to reduce greatly the complexity of construction wiringand strengthen the load capacity of bus , using flexibly and reliably .

   1、 Meeting internationallystandardized protocol of DALI（IEC60929/ICE62386）

   2、 Input range: 12-22VDC ，The power supply of DALI bus  Current ≤3mA

   3、The output dimming controlsignal : broadcasting

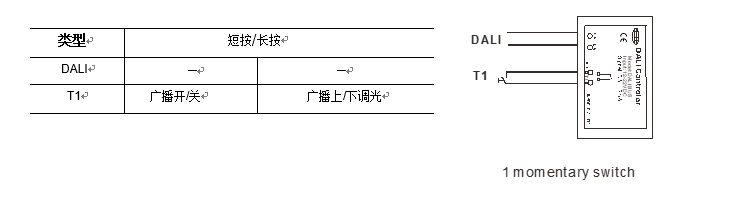

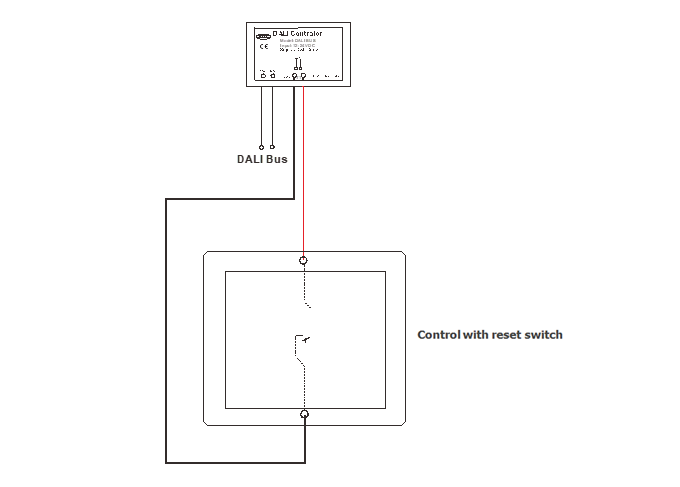

   4、Applying conditions：normally open contact reset switch(1-4)

   5、Control type：short press、on /off、  long press 、up/down dimming

   6、Operating temperature: ta:-20-45℃ tc:75℃

   7、Three-years guarantee

   8、 Weight:net weight 14g gross weight 25g

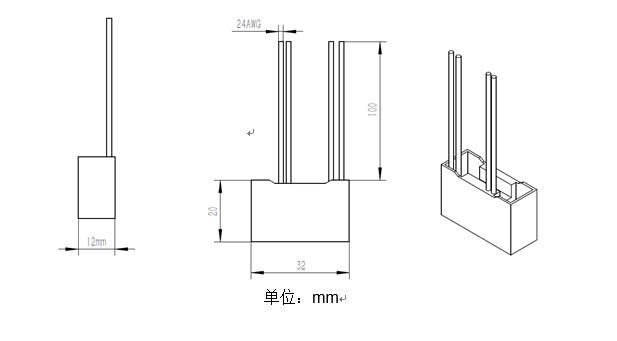

   9、 Product size：L32×W12×H20mm

   10、Packing size：L50×W50×H30mm

   1、    Readingall explanation carefully before using

   2、    Settingup a good environment to ventilate and dissipate

   3、    In theprocess of using, paying more attention to preventing moist, shock and dust.

   4、    Prohibitthe rain and the contact of other liquid or corrosive gases.

   5、    Youshould make drying treatment in time when it is affected with damp and liquid.

   6、    Youshould check the damaged and aging rate of electric circuit in regular andreplace disqualified            circuitimmediately.

   7、    Pleaseconnect with agent or our company when the machine breaks
