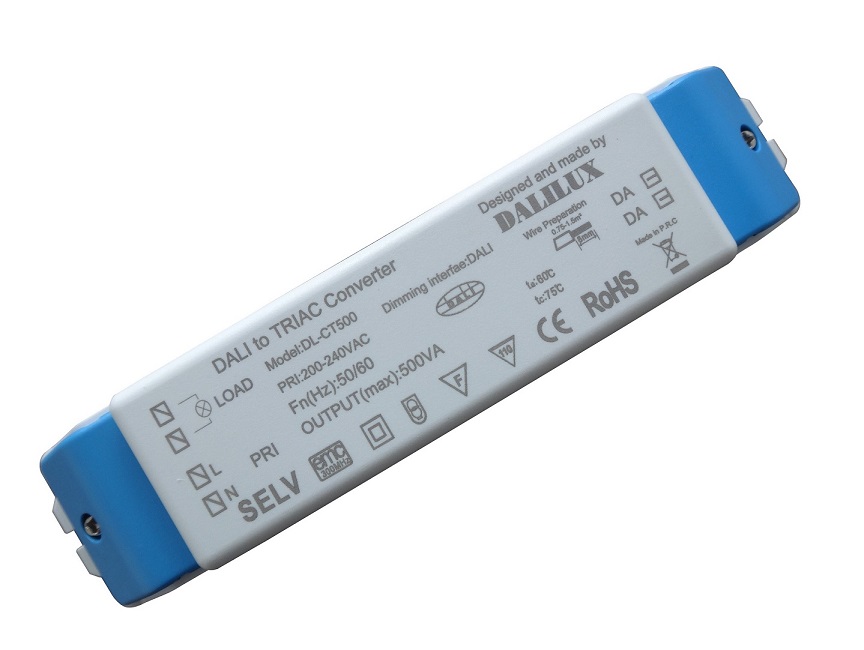

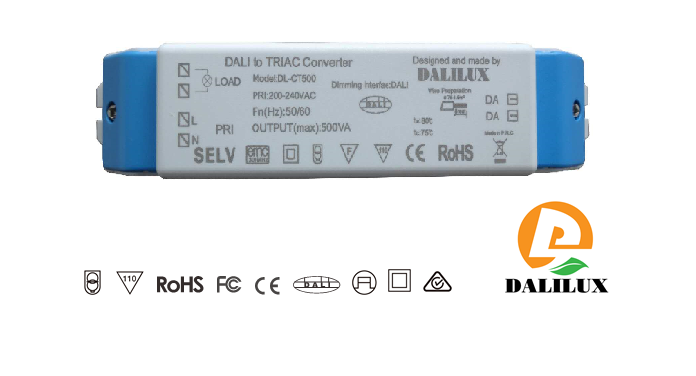

DALILUX LIGHTING launched DALI multifunction digitalfront and rear pulse light modulator DL-CT, in full compliance with DALIinternational standards. Perfectly compatible with DALI control systems frominternationally renowned brands such as SIEMENS, TRIDONIC, OSRAM, PHILIPS andLutron.
DL-CT multi-functiondigital front and rear pulse phase dimmer using high-precision digital controlcircuit can be adapted to all available on the market before and after thesilicon dimmable lamps and all tungsten filament resistive load. With automaticloading detection, the use of safe and reliable.
DL-CT:
1、 Meeting internationally standardized protocolof DALI(IEC60929/ICE62386)
2、 Input voltage : 200-240VAC 50Hz/60Hz。
3、 Standby power ≤1.3W
4、 Output power:20-300VA
5、 One-way output
6、 Dimming range:0-100%
7、 IP level:IP20
8、 Operating temperatur: ta:-20-45℃ tc:75℃
9、 Quality warranty for 3 years
10、Net weight:150g

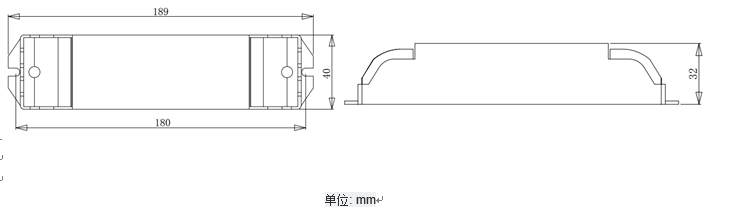

11、Size:L189×W40×H32mm
1、 Readingall explanation carefully before using
2、 Settingup a good environment to ventilate and dissipate
3、 Inthe process of using, paying more attention to preventing moist, shock anddust.
4、 Prohibitthe rain and the contact of other liquid or corrosive gases.
5、 Youshould make drying treatment in time when it is affected with damp and liquid.
6、 Youshould check the damaged and aging rate of electric circuit in regular andreplace disqualified circuitimmediately.
7、 Pleaseconnect with agent or our company when the machine breaks
