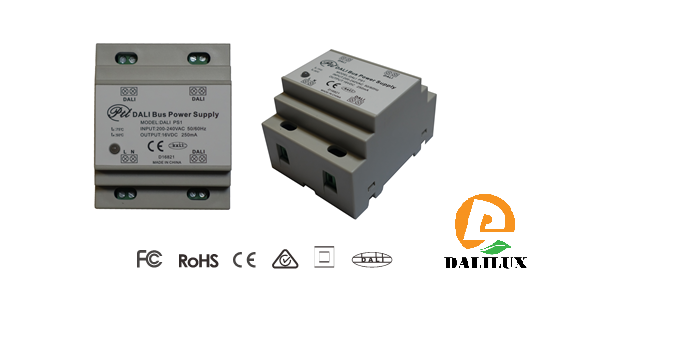

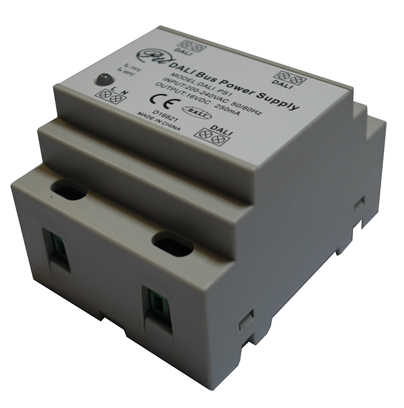

DALI SYSTEM




        ØTo supply max.250 ma for DALI devices or control modules

        ØThe controls interface of a DALI ballast normally

       sources 2 mA, with 64 individual addresses this

       will source 128 mA. The remaining 112 mA can

       be used to power other DALI controls without an

       internal power supply such as the DALI GK and

       DALI SK..

      · ØFor installation in switching cabinets

       · Øscrew terminals

       · Ø3-year guarantee





       ·Rated supply voltage: 220 -240 V AC

       ·Mains frequency: 50 / 60 Hz

       ·Power: 5 W

       ·Max.output current,: DALI 250 mA

       ·Output voltage 16 V ±5 %

       ·Operating temperature 0 ... +50 °C

       ·Storage temperature 0 ... +70 °C

       ·Type of protection IP20

       ·GrossWeight:320g

       ·Netweight:300g

       ·ExternalDimension: L92*W78*H56 mm
