DALI SYSTEM

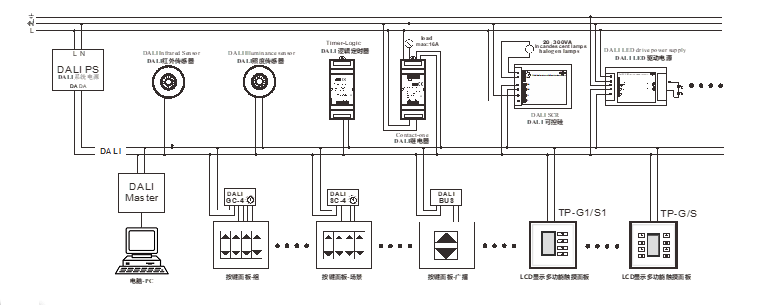

       DALI is aninternational standard bus protocol for intelligent lighting and is widely usedin indoor and outdoor lighting. DALILUX designed DALI Timer, comply with DALIstandard. Perfectly compatible with SIEMENS、TRIDONIC、OSRAM、PHILIPS、Lurton..these international big brand DALI control system.

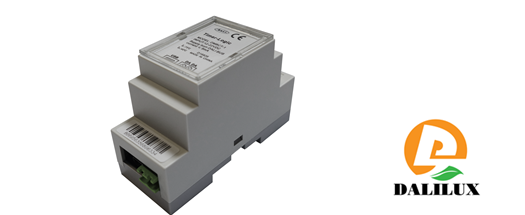

       DL-LT has ahigh accuracy, high stability time base,At the same timebuilt-in charging circuit,The rechargeable batteryaccumulates more than 550mah,Life of 5 to 8 years。DL-LT powersupply from the DALI bus to obtain, design current less than 5mA, low powerconsumption, greatly reducing the complexity of the construction wiring toincrease the bus load capacity。Use DALILUX specialconfiguration tool Device_C through the USB interface and computer connectionfor parameter configuration, you can also through the DALI bus online parameterconfiguration。And has a friendly operating software, powerful。DL-LT 24hours a day for a time period, a total of 16 time points can be set, each timepoint can be set hours (Hour), minutes (Minute), seconds (Second). Each timepoint can output 8 goals, a total of 128 targets. Target settings includebroadcast mode, single address, group, scene, and dimming time.



       DL-LT:

     Comply withinternational DALI standards(IEC60929/ICE62386)

     Inputvoltage 12-22VDC ,getting power from the bus,current≤5mA

     Can set 16 time points, each timepoint 8 target, a total of 128 goals

     Target settings include broadcastmode, single address, group, scene.

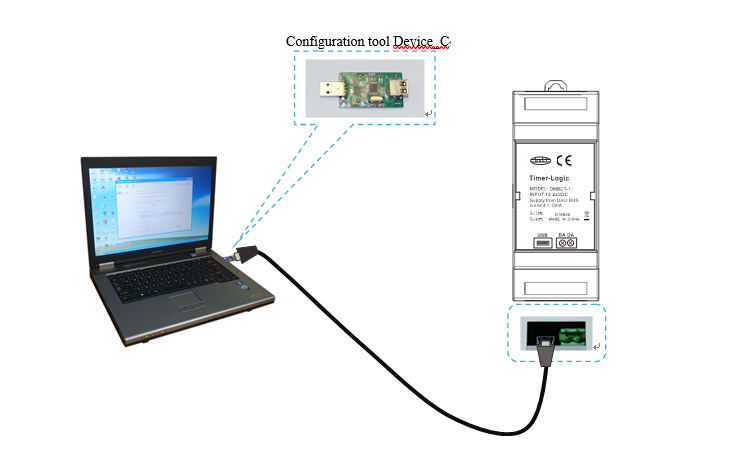

     Support USB port connection modeparameter settings.

     The internal clock can besynchronized and corrected by software,Year error of no more than 2 minutes.

     Standard rail mounting.

     Working temperature: ta: -20-45 ℃ tc: 75 ℃

     Warranty 3 years

     Weight: Net weight 65g Grossweight 90g

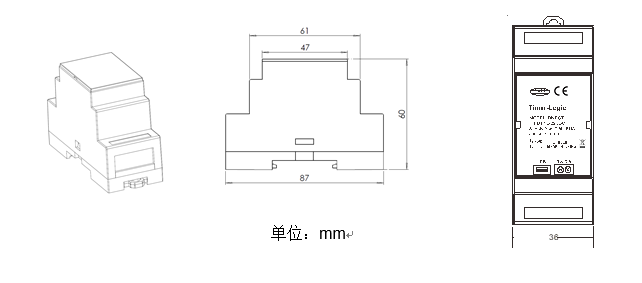

     Product Size: L87 × W36 × H60mm

     Packing Size:L105×W45×H68mm













       1、 Readall instructions before use.

       2、 Havea good ventilation environment.

       3、 Duringuse, pay attention to moisture, shock, dust.

       4、 Nonrain, other liquids or corrosive gases.

       5、 Moistureor liquid invasion, should be promptly dried.

       6、 Regularlycheck the extent of damage and aging lines should be replaced.

       7、 Whenthe machine fails, please contact your agent or the company.
