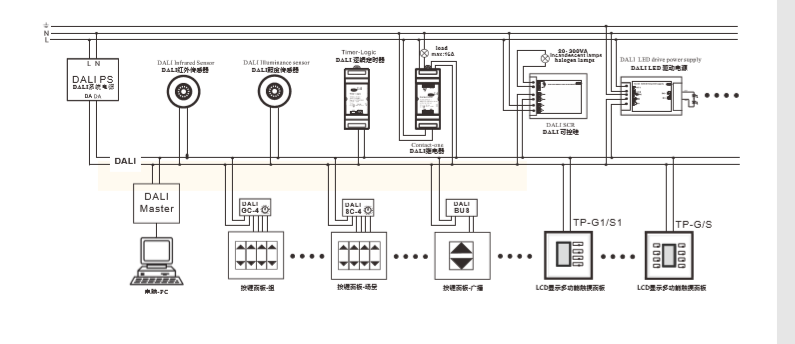

DALI SYSTEM


       DALIintelligent lighting technology with perfect lighting solution, widely used in indoorand outdoor lighting .We designed DALI SCENE CONTROL MODULE DL-SC, completelycomply with DALI standard IEC60929 and IEC62386.Perfectly compatible with SIEMENS、TRIDONIC、OSRAM、PHILIPS、Lutron..these international big brand DALI control system

       DALI SCENECONTROL MODULE DL-SC is much more convenient to use. DL-SC get power from theDALI bus, the current consumption designed is less than 2mA.With low powerconsumption, which can greatly reduce wiring complexity construction and toincrease the capacity of the bus load.

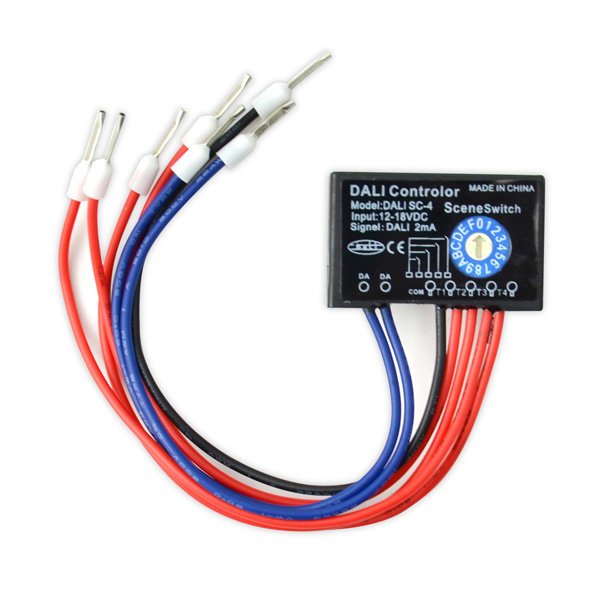

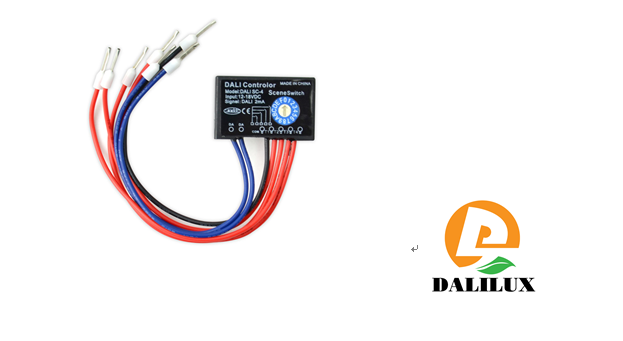

        DL-SC:

       1、Comply with international DALI standards(IEC60929/ICE62386)

       2、 Input voltage 12-22VDC Via DALI bus,Current ≤2mA

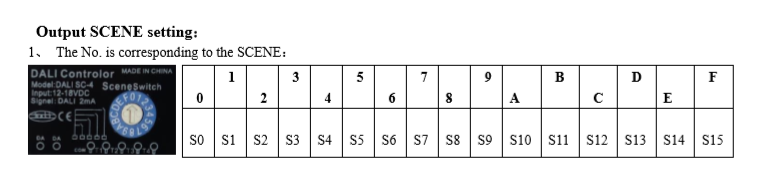

       3、Control maximum 4 Scenes.

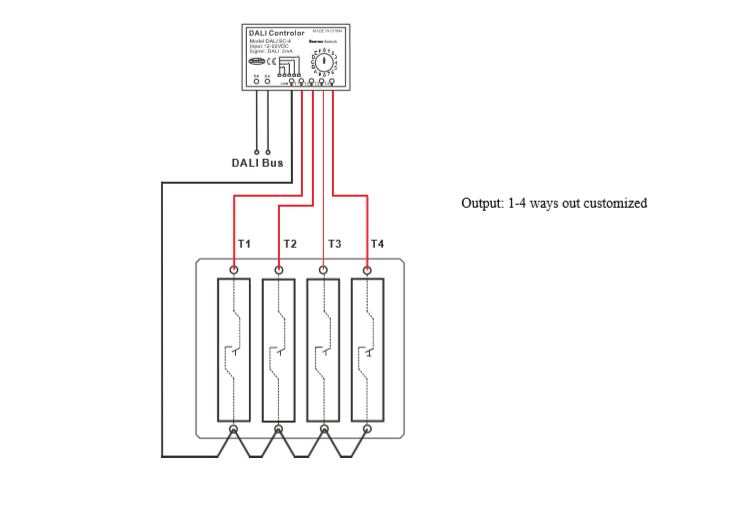

       4、Application:1-4 key reset switch.

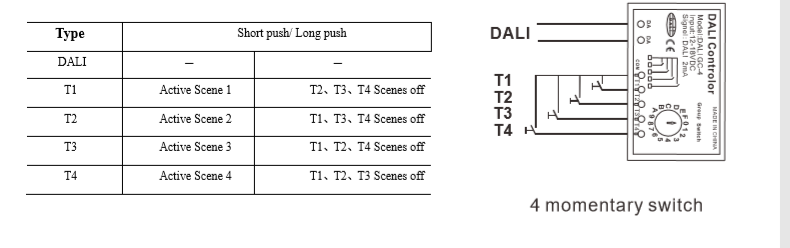

       5、Control mode: short press to switch scenes.

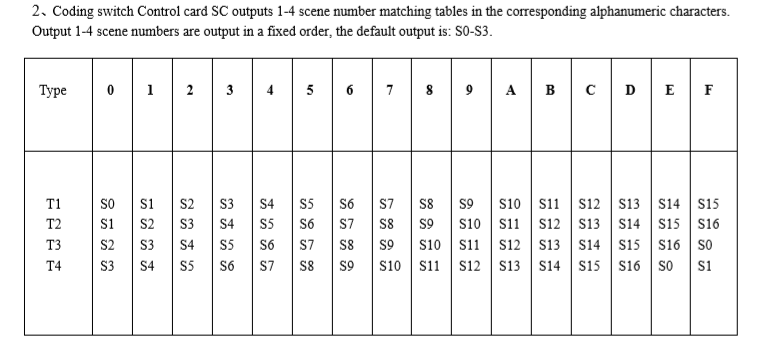

       6、Customizable key functions, can control any 4 adjacent Scenes.

       7、Operating temperature: ta:-20-45℃ tc:75℃

       8、Warranty:3Years

       9、Net.Weight:15g

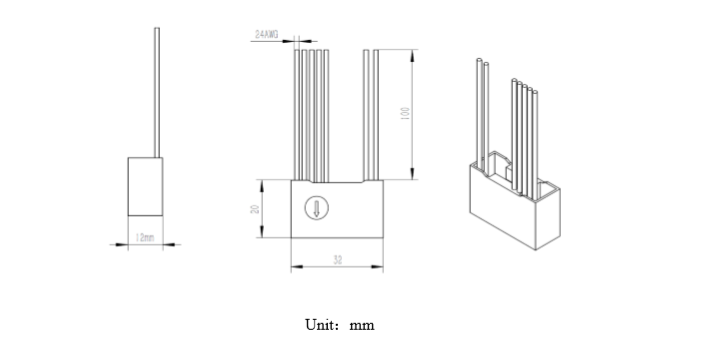

       10、Product size:L32×W12×H20mm (Smart for anyswitch box)




















       1、Readall instructions before use.

       2、Havea good ventilation environment.

       3、Duringuse, pay attention to moisture, shock, dust.

       4、Nonrain, other liquids or corrosive gases.

       5、Moistureor liquid invasion, should be promptly dried.

       6、Regularlycheck the extent of damage and aging lines should be replaced.

       7、Whenthe machine fails, please contact your agent or the company.
