DALI SYSTEM

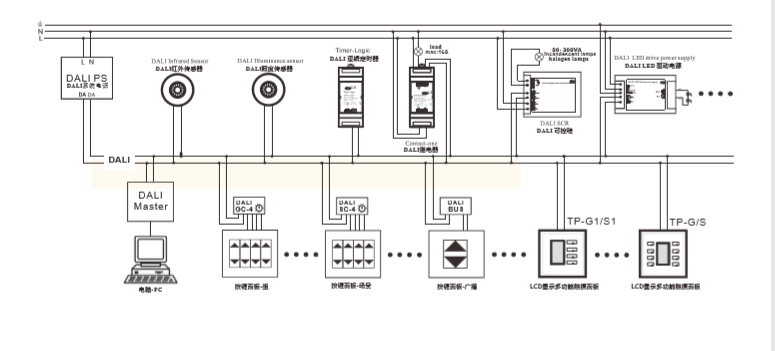

       DALIintelligent lighting technology with perfect lighting solution, widely used in indoorand outdoor lighting .We designed DALI key touch DL-GC, completely comply withDALI standard IEC60929 and IEC62386.Perfectly compatible with SIEMENS、TRIDONIC、OSRAM、PHILIPS、Lutron..these international big brand DALI control system

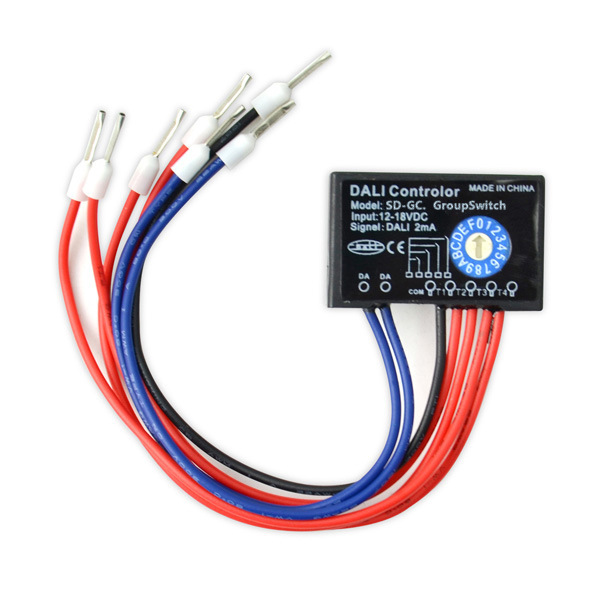

       DALI keytouch DL-GC is much more convenient to use. DL-GC get power from the DALI bus,the current consumption designed is less than 2mA.With low power consumption,which can greatly reduce wiring complexity construction and to increase thecapacity of the bus load.



        DL-GC:

       1、Comply with international DALI standards(IEC60929/ICE62386)

       2 Input voltage 12-22VDC Via DALI bus,Current ≤2mA

       3、Control maximum 4 groups,Dimming:0-100%

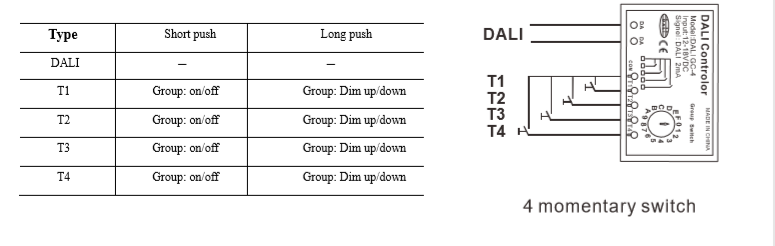

       4、Short push on/off, long push dimming up/down

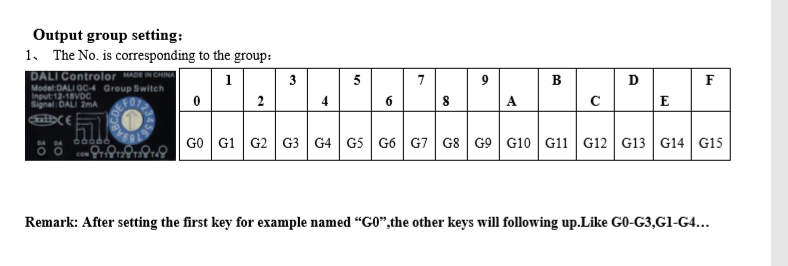

       5、Customizable key functions,can control any 4 adjacentgroups.

       6、Operating temperature: ta:-20-45℃ tc:75℃

       8、Warranty:3Years

       9、Net.Weight:15g

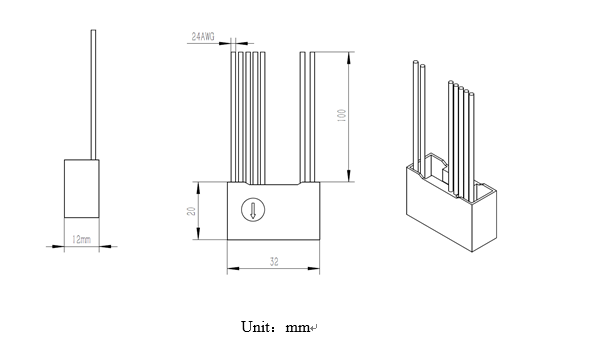

       10、Product size:L32×W12×H20mm














       1、Readall instructions before use.

       2、Havea good ventilation environment.

       3、Duringuse, pay attention to moisture, shock, dust.

       4、Nonrain, other liquids or corrosive gases.

       5、Moistureor liquid invasion, should be promptly dried.

       6、Regularlycheck the extent of damage and aging lines should be replaced.

       7、Whenthe machine fails, please contact your agent or the company.
